Detailed Description
This exceptional Cherokee 235 delivers true utility with full fuel and payload capability while cruising at an efficient 155 mph. The aircraft features upgraded avionics package designed for real-world flying: Aspen EFD 1000 MAX with synthetic vision provides exceptional situational awareness, complemented by dual Garmin WAAS GPS units (530W and 430W) for navigation. The Century III autopilot with altitude hold reduces workload on long flights, while the Garmin 340EX audio panel keeps communications clear. Advanced weather capabilities include a Garmin GDL 69 XM Weather receiver and WX-500 Stormscope for enroute decision making. Additional features like the Fuel Guard digital fuel monitor and ADSB in and out allow this Cherokee 235 to be a complete package.
Additional photos and log books available by request
General Specs
Total Time:4741
Engine 1 Time:1529 SFRM
Engine 2 Time:615 SMOH
Prop 1 Time:167 SNEW
Useful Load:1117 lb
Condition:Used
Year Painted:1995
Interior Year:2025
Flight Rules:BTH
# of Seats:4
Airframe
1- Aircraft TT: 4741.3 Current Tach: 1947
2- Annual Inspection Next Due: : May 2026
3- ELT Battery Due: Nov 2025
4- Certified IFR/VFR Next Due: June 2027
5- Heated Pitot Tube

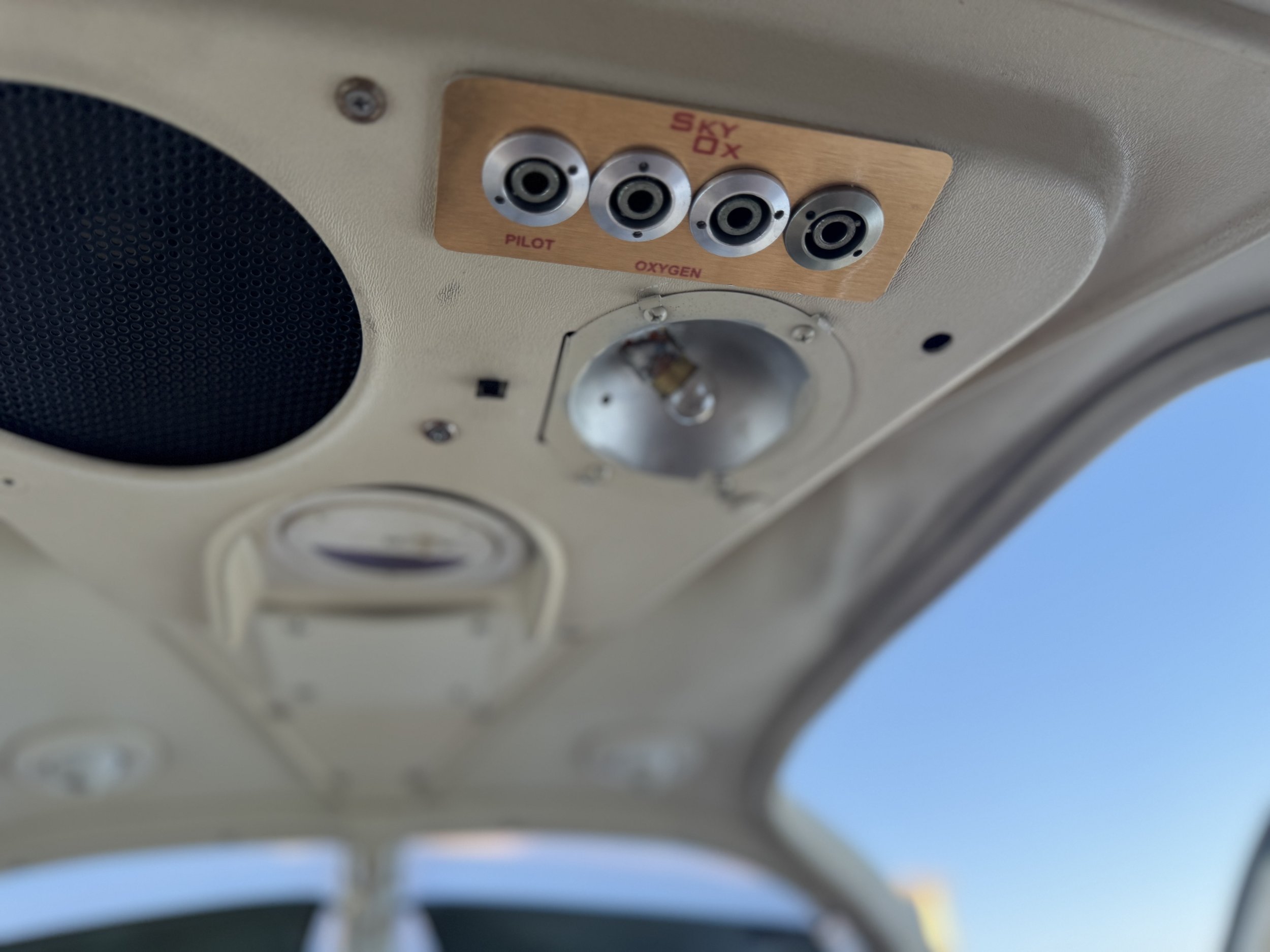

6- 4 Place Oxygen
7- All Applicable / Recurring Airworthiness Directives are current.
8- Complete Log Books
In Annual, performed 5/2025
Engines / Mods / Prop
Engine:
Lycoming O-540-B4B5 S/N L-21945-40A 235HP, TBO (2,000HRS)
TTE- 2768 hrs
SMOH Factory Reman- 1529 hrs in 5/2004
IRAN (almost complete overhaul)- 615 hrs in 2014 by Tims Aircraft Engines
Compressions #1. 76/80 #2. 76/80 #3. 78/80 #4. 77/80 #5. 75/80 #6. 75/80
Prop:
Hartzell Constant Speed Prop HC-C3YR-1RF
SNEW- 167.3 hrs in 2022
In Annual, performed 5/2025
Avionics / Equipment
Aspen EFD 1000 MAX w/ synthetic vision
Garmin GNS 530W Nav/Com/GPS
Garmin GNS 430W Nav/Com/GPS
Century III Autopilot w/ altitude hold coupled to GPS
Garmin GMA 340 audio panel
Garmin GTX 330 transponder
Fuel guard GPH Fuel Monitor
Garmin GDL 69 Weather Receiver
WX 500 Stormscope
Encoding altimeter
Garmin GI-102a CDI
Interior / Exterior
Interior: Rated: 8/10

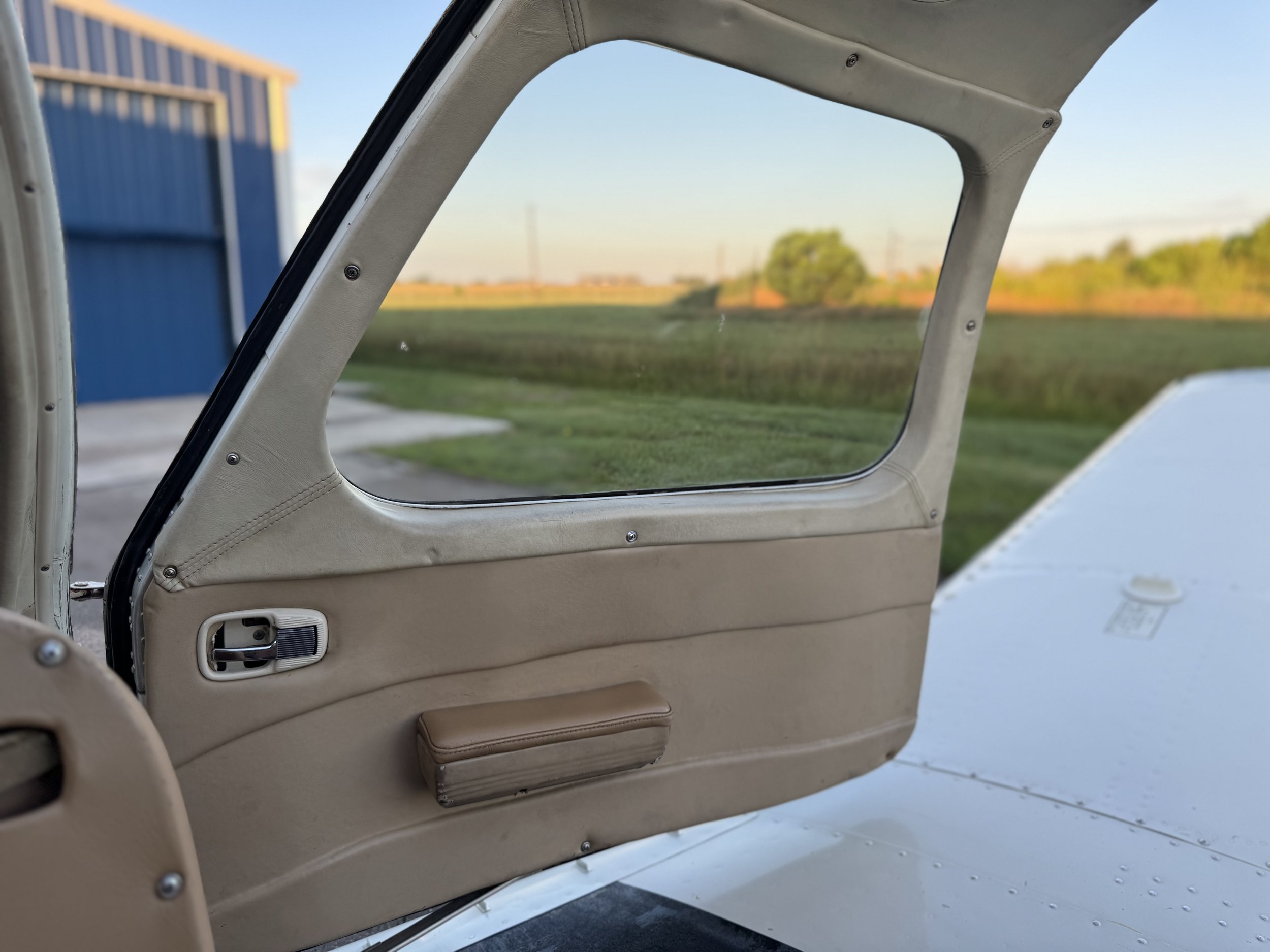

Plush Wheat Nubuck leather seats, cream headliner and side panels, and black carpet replaced in 2001 by Buchanan Aviation Services. The front seats were recovered 5/2025 by Farfan Interior. The interior is in great shape.
Exterior: Rated: 7/10

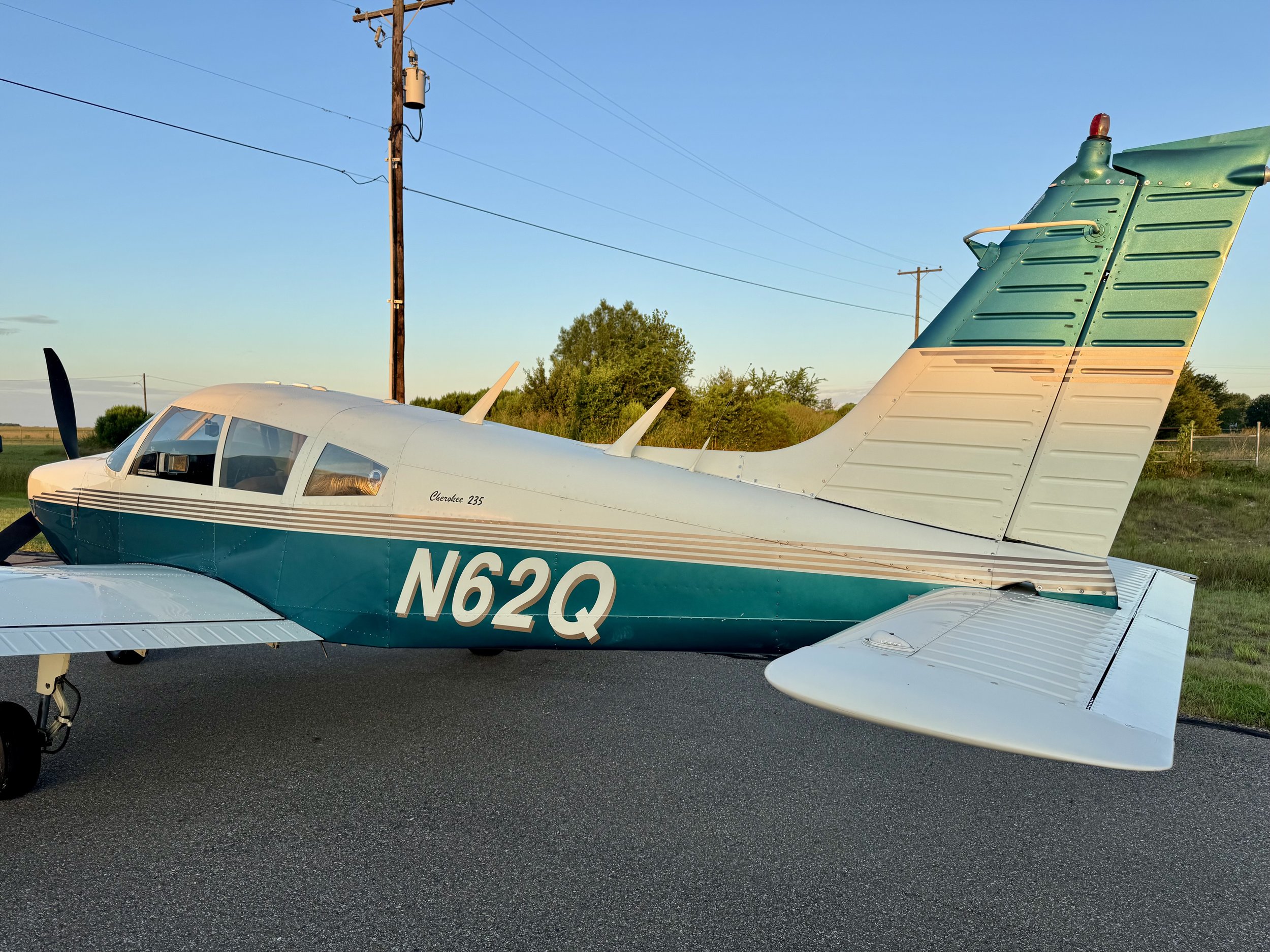

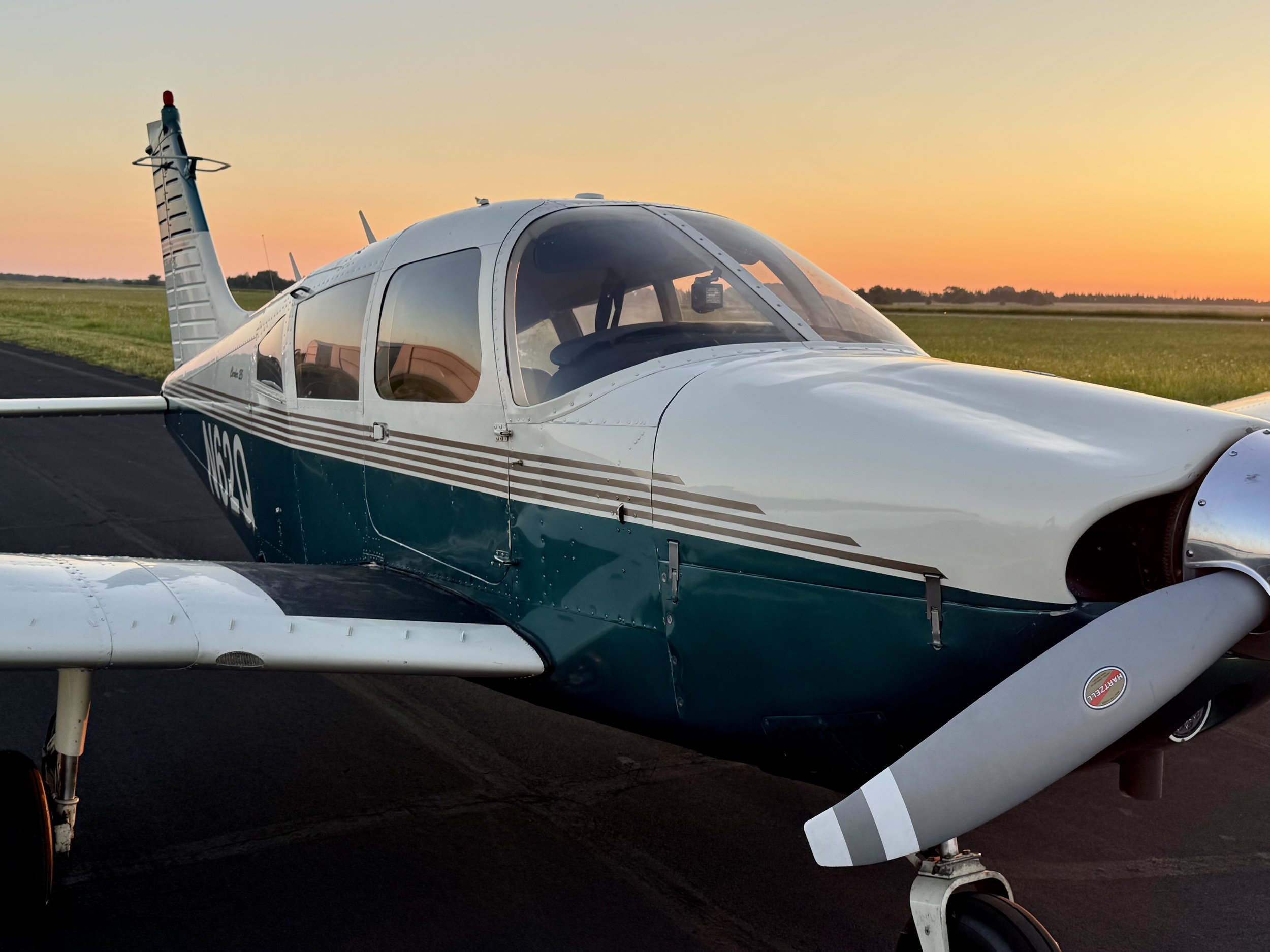

Painted in 1995 in Creamy White, with Express Green and Las Vegas Gold accent stripes. Shines great and has fantastic ramp appeal. Recently buffed and polished with hybrid ceramic coating. Minor imperfections
Remarks
Additional Equipment:
Fuel Tanks 84 Gal.
Oxygen
Manual Flaps
Vortex Generators (VG's)
Fresh Air Vents
4 Place Intercom
Mounted Tow Bar
Cruise Speed:
153 mph/136 kts @ 14 GPH
Stall Speed: 65 mph, 55 mph with VG's
Initial Climb Rate: 800 fpm
Service Ceiling: 13,550 ft
Range: 915 nm (economy) 745 nm (75%)
Takeoff Distance (over 50ft obstacle): 1,410 ft
Landing Distance (over 50ft obstacle): 1,740 ft
Additional Details:
Location- Paris, TX (KPRX)
Broker- Zane Co Aero - Paris, TX (KPRX)
Complete Log Books
May 2025 Annual Inspection
Aircraft specifications are subject to change at any time. This specification sheet is intended as preliminary
information and is subject to verification by the purchase
